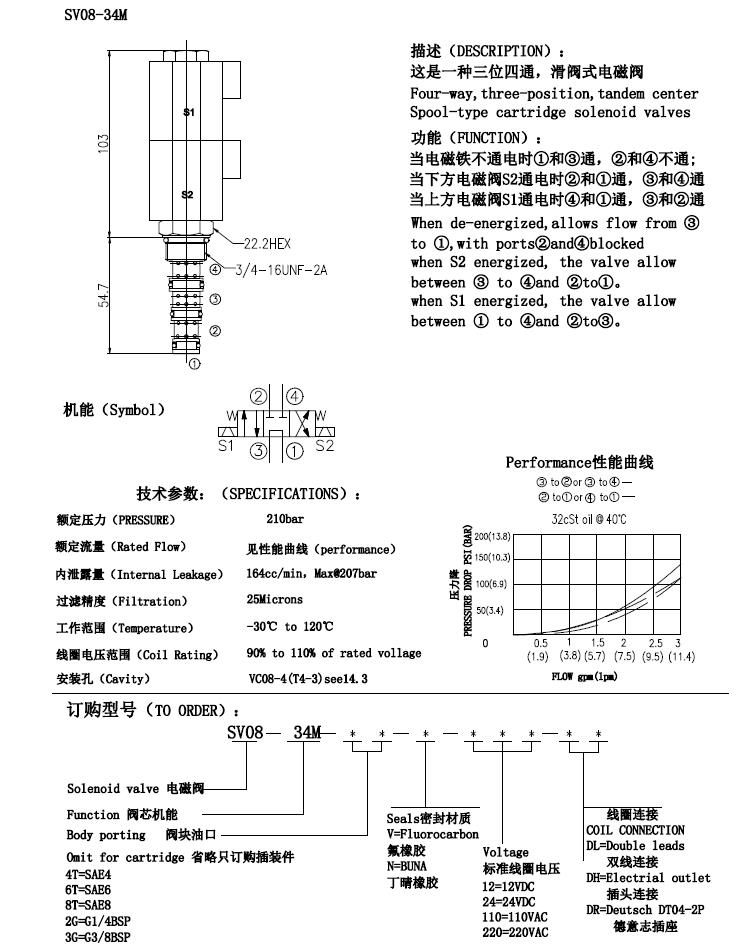

SV08-34M Spool-Type, 4-Way, 3-Position, Solenoid-Operated Cartridge Valve

A solenoid-operated, 4-way, 3-position, direct-acting, spool-type, screw-in hydraulic cartridge valve.
Max Flow:
Max Pressure:
Installation:
Availability:
Quantity:
  • SV08-34M

  • Longli

  • 8412299090


DESCRIPTION
A solenoid-operated, 4-way, 3-position, direct-acting, spool-type, screw-in hydraulic cartridge valve.

OPERATION
When de-energized, the SV08 blocks cylinder ports, while allowing flow from 3 to 1.
When coil S1 is energized, flow is allowed from 3 to 2, and from 4 to 1. When coil S2 isenergized,
flow is allowed from 3 to 4 and from 2 to 1.
In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be
directed to port 2. While 1 may be fully pressurized, it is not intended for use as the valve's inlet.
Operation of Manual Override Option: To override, push the knurled button toactivate the coil #2 (S2)
function, or pull the knob to activate the coil #1 (S1) function.

FEATURES
• Continuous-duty rated solenoid.
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Efficient wet-armature construction.
• All ports may be fully pressurized.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Industry-common cavity compact size.

RATINGS
Operating Pressure: 210 bar (3000 psi)
Flow: Up to 11 lpm (3 gpm)
Internal Leakage: 278 cc/minute (17 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 100 °C (-40 to 212 °F) with Buna seals;
  -26 to 204 °C (-15 to 400 °F) with Fluorocarbon seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20° C: Standard Coil: 1.2 A at 12 Vdc;
   0.13 A at 115 Vac (full wave rectified).
   E-Coil: 1.4 A at 12 Vdc; 0.7 A at 24 Vdc
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
