Welcome to Jinan Longli Hydraulic Device Co.,Ltd.
Email : longlisales@longlihyd.com
 |
| Quantity: | |
|---|---|
DHF08-222/SV08-22
Longli
8412299090

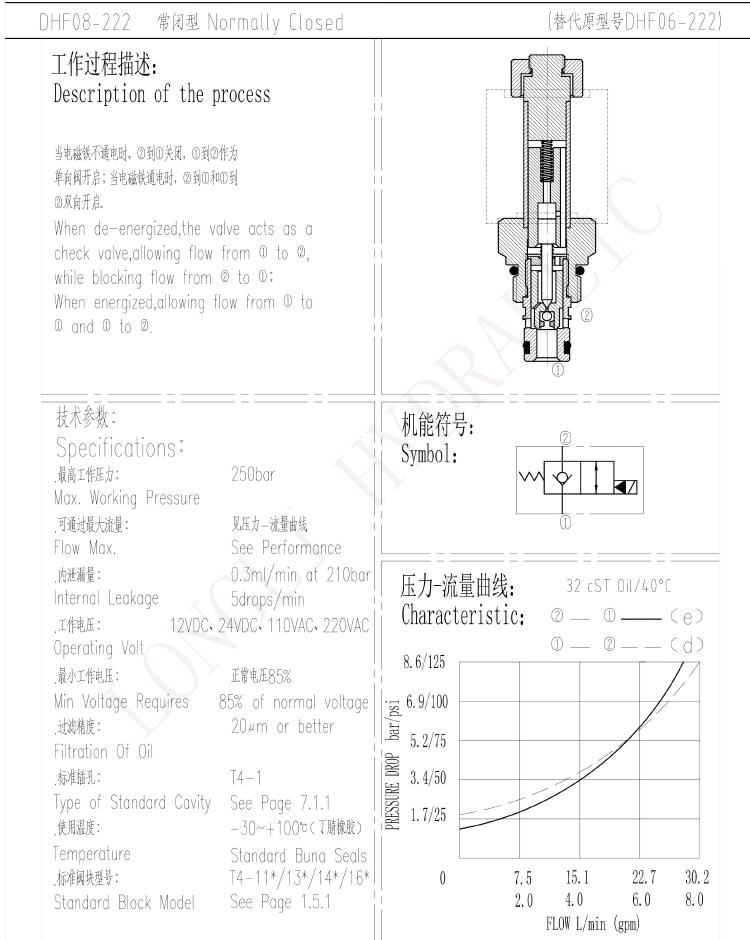

DESCRIPTION
This DHF Series solenoid-operated 2-way, 2-stage Cartridge Valve is a pilot-operated directional poppet valve. The valve is low leakage and available in either a normally open or normally closed configuration to control flow from port 2 to port 1. A reverse flow check will allow flow from 1 to 2 in either the open or closed condition.
FEATURES
Higher flow rates than competing valves of similar size.
Designed using CFD fluid simulation for optimized geometries.
All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.
Coil connector options offer ratings up to IP69K. See individual coil product pages for details.
This valve exhibits extremely low leakage - 0.004 in3 (0.07 cc)/min (1 drop/min).
This valve is available with a manual push-type override option for normally open versions only.
A FULL DATA SHEET is available for this model using the link at the top of the page.
A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
RATINGS
Model: DHF08-222
Place of Origin: Shandong,China (Mainland)
Product: 2/2 Solenoid Operated Directional Poppet Valve
Description: With small size, light weight, low cost for unit
Materials: free-machining steel
Working pressure: 250bar
Flow: 30L/min
Voltage: 12V, 24V, 110V, 220V
Customized design: Available, as per drawings or samples
OEM/ODM business: Acceptable, please contact us
Quality tested: High pressure testing before delivery
Different threads: BSPP, METRIC,SAE option
