DHF08-220/SV08-20
Longli
8412299090

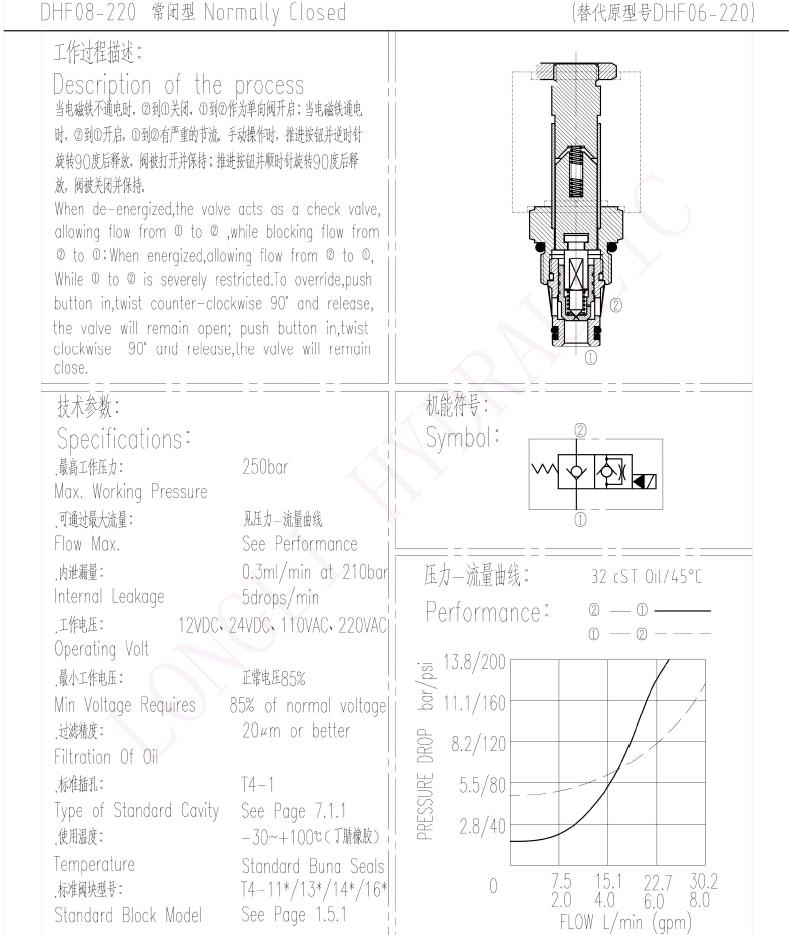

DESCRIPTION
A solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic Cartridge Valve, intended to act as a blocking or load-holding device for low flow circuits.
OPERATION
When de-energized, the cartridge valve acts as a check valve, allowing flow from 1 to 2, while blocking flow from 2 to 1. When energized, allowing flow from 2 to 1, while 1 to 2 is severely restricted. To override, push button in, twist counterclockwise 180°, and release. In this position, the valve will remain open; push button in, To return to normal operation, push button in, twist clockwise 180°, and release, the valve will remain close.
FEATURES
• Continuous-duty rated coil.
• Hardened seat for long life and low leakage.
• Optional coil voltages and terminations.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Industry common cavity.
• Compact size.
Model: DHF08-220
Place of Origin: Shandong,China (Mainland)
Product: Hydraulic 2 Way 2 Position Solenoid Valve(Normally Closed)
Description: With small size, light weight, low cost for unit
Materials: free-machining steel
Working pressure: 250bar
Flow: 30L/min
Voltage: 12V, 24V, 110V, 220V
Customized design: Available, as per drawings or samples
OEM/ODM business: Acceptable, please contact us
Quality tested: High pressure testing before delivery
Different threads: BSPP, METRIC,SAE option
