WE6 Solenoid Directional Control Valves

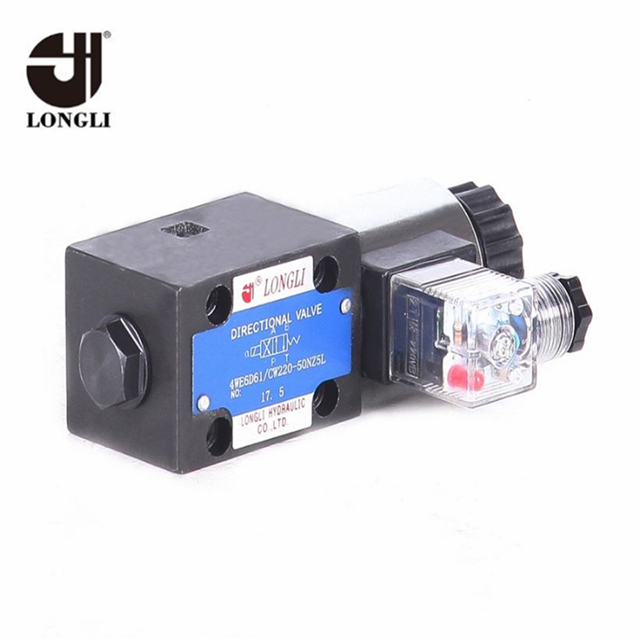

          4WE6   Directional control valve

Directional valves type WE are solenoid operated directional spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of housing; one or two solenoids; control spool; and no, one, or two return springs. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates from 4000 PSI to 5000 PSI and 21 GPM to 32 GPM cover a wide range of applications.

Features:

• Size 6

• For subplate mounting:
  Porting pattern according to ISO 4401-3, NFPA T3.5.1M R1,
  and ANSI B93.7 D 03

• Wet-pin AC or DC solenoids

• Solenoids with detachable coil

• Electrical connection as individual or central connection

• Optional spool position monitoring

• Smooth switching characteristics

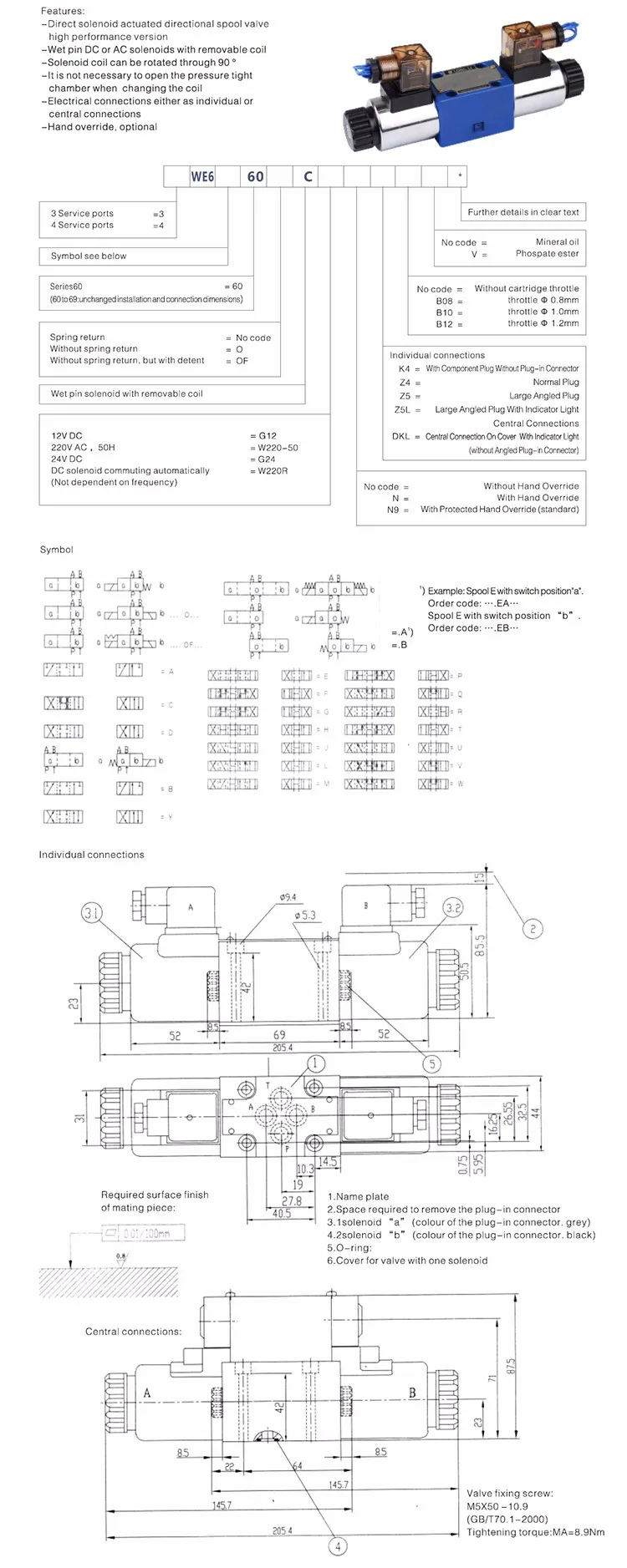

Features:

- Direct solenoid actuated directional spool valve high performance version

- Wet pin DC or AC solenoids with removable coil

- Solenoid coil can be rotated through 90o

- It is not necessary to open the pressure tight chamber when changing the coil

- Electrical connections either as individual or central connections

- Hand override, optional
