4WMM6/10/16/25
Longli
841290

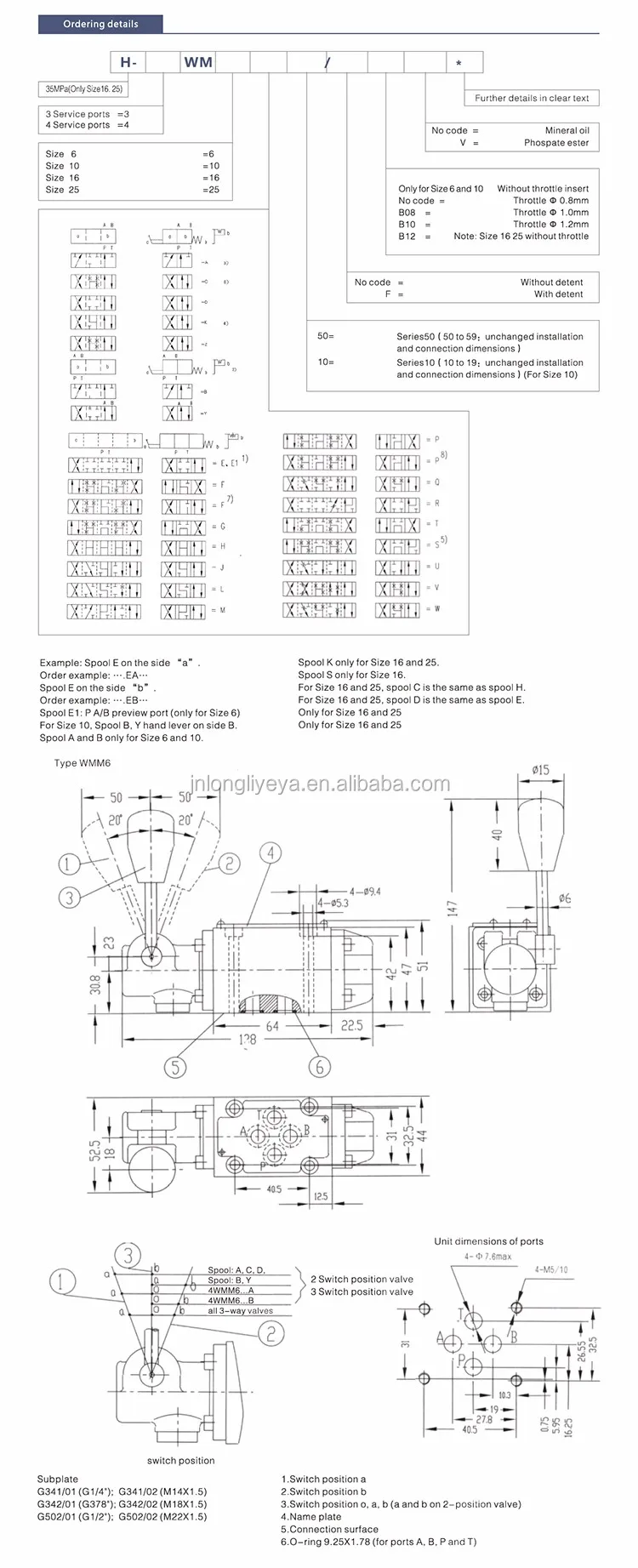

4WMM6 Directional control valve
Product name | Directional control valve |
Model | 4WMM6 |
Place of Origin | Shandong, China |
Size | 6 |
Max. Flow | up to 450 L/min |
Max.Pressure | up to 35Mpa |
Material | Casting |
Fluid | Mineral oil or Phosphate ester |
Temperature range | -30~+80℃ |
Power | Hydraulic |
Color | Customer's request |
Certificate | ISO9001 |
Features:
- Direct actuated directional spool valve with hand lever
- For subplate mounting
4WMM6 Directional control valve
Product name | Directional control valve |
Model | 4WMM6 |
Place of Origin | Shandong, China |
Size | 6 |
Max. Flow | up to 450 L/min |
Max.Pressure | up to 35Mpa |
Material | Casting |
Fluid | Mineral oil or Phosphate ester |
Temperature range | -30~+80℃ |
Power | Hydraulic |
Color | Customer's request |
Certificate | ISO9001 |
Features:
- Direct actuated directional spool valve with hand lever
- For subplate mounting
