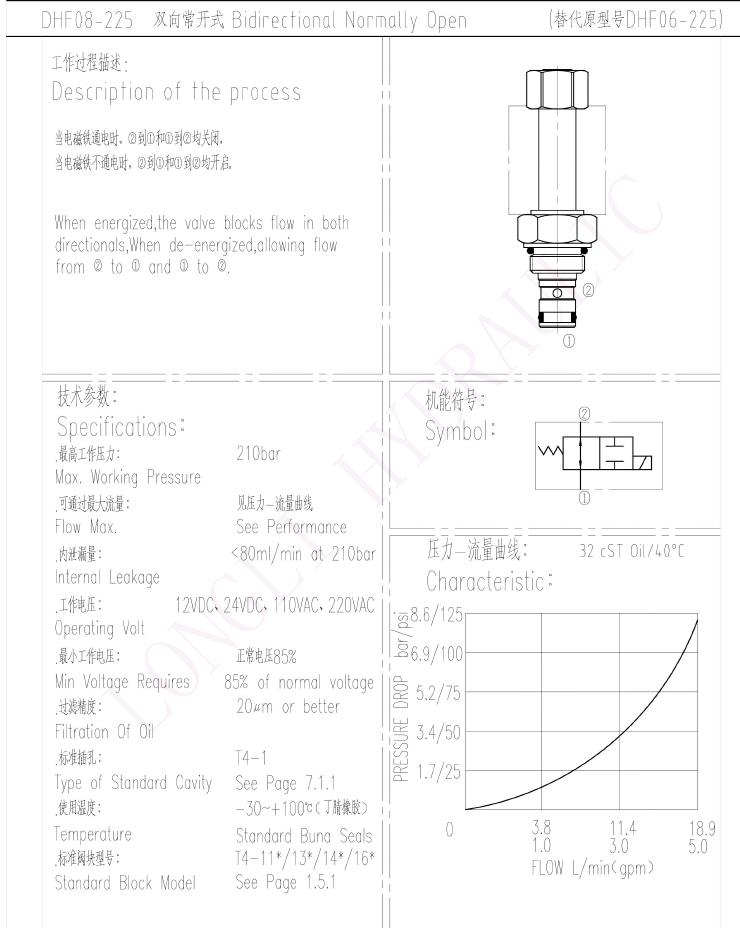

DHF08-225/SV08-25 Solenoid-operated, 2-way, normally open, spool-type, direct-acting, screw-in hydraulic cartridge valve
You are here: Home » Products » Cartridge Valve » Directional » DHF08-225/SV08-25 Solenoid-operated, 2-way, normally open, spool-type, direct-acting, screw-in hydraulic cartridge valve
Share to:

DHF08-225/SV08-25 Solenoid-operated, 2-way, normally open, spool-type, direct-acting, screw-in hydraulic cartridge valve

A solenoid-operated, 2-way, normally open, spool-type, direct-acting, screw-in hydraulic cartridge valve, intended for blocking or load-holding in low flow circuits.

Max Flow:
Max Pressure:
Installation:
Quantity:
  • DHF08-225/SV08-25
  • LongliDHF08-225/SV08-25
  • 8412299090


DESCRIPTION
A solenoid-operated, 2-way, normally open, spool-type, direct-acting, screw-in hydraulic cartridge valve, intended for blocking or load-holding in low flow circuits.

OPERATION
When de-energized, the DHF08-225 blocks allows in both directions. When energized the spool shifts to block flow in both directions.
Operation of Manual Override Option: To override, push button in and twist counterclockwise 180°. The internal spring will push the button out. In this position the valve may be only partially shifted. To assure full override shift, pull the button out to its fullest extension and hold it in this position. To return to normal operation, push button in, twist clockwise 180°, and release. Override will be detented in this position.

FEATURES
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Both ports may be fully pressurized.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Industry common cavity
• Compact size.

Model: DHF08-225
Place of Origin: Shandong,China (Mainland)
Product: Hydraulic 2 Way 2 Position Solenoid Valve(Normally Closed)
Description: With small size, light weight, low cost for unit
Materials: free-machining steel
Working pressure: 210bar
Flow: 10L/min
Voltage: 12V, 24V, 110V, 220V
Customized design: Available, as per drawings or samples
OEM/ODM business: Acceptable, please contact us
Quality tested: High pressure testing before delivery

DHF08-225/SV08-25 Solenoid-operated, 2-way, normally open, spool-type, direct-acting, screw-in hydraulic cartridge valve
