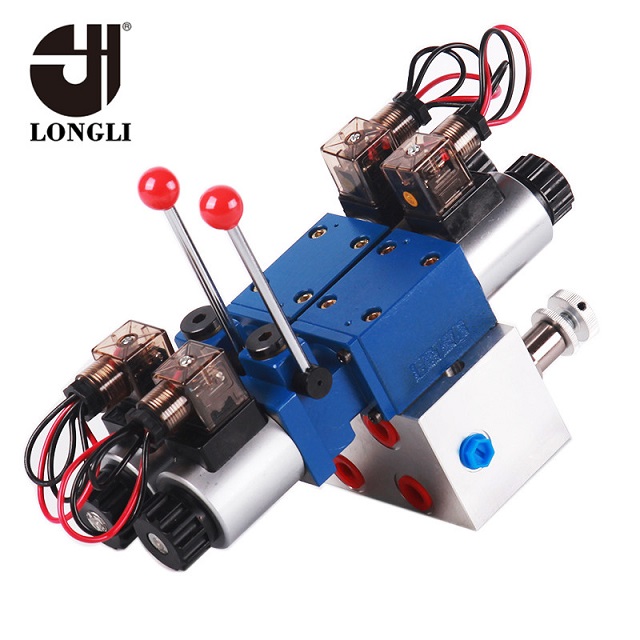

LL265 Hydraulic Directional Solenoid Directional Manifold Valve Set with Emergency Manual Control Lever

Model:LL265
Availability:
Quantity:
Inquire Add to Basket

  • LL265

  • Longli

  • 8481

LL265 Hydraulic Directional Solenoid Directional Manifold Valve Set with Emergency Manual Control Lever

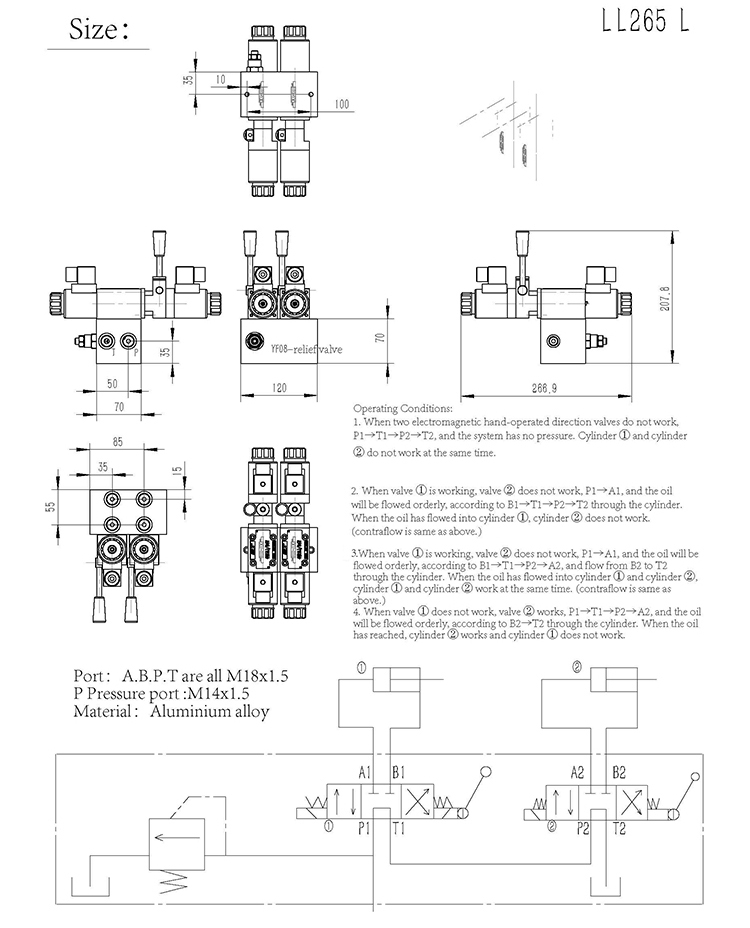

LL265specification

Technical Parameters:

Product name

hydraulic base plate

Model

LL265

Place of Origin

Shandong, China

Max. Flow

up to 120L/m

Max.Pressure

25Mpa

Material

Aluminum Alloy / steel

Medium

Oil

Power

Hydraulic

Color

Customer's request

Certificate

ISO9001
