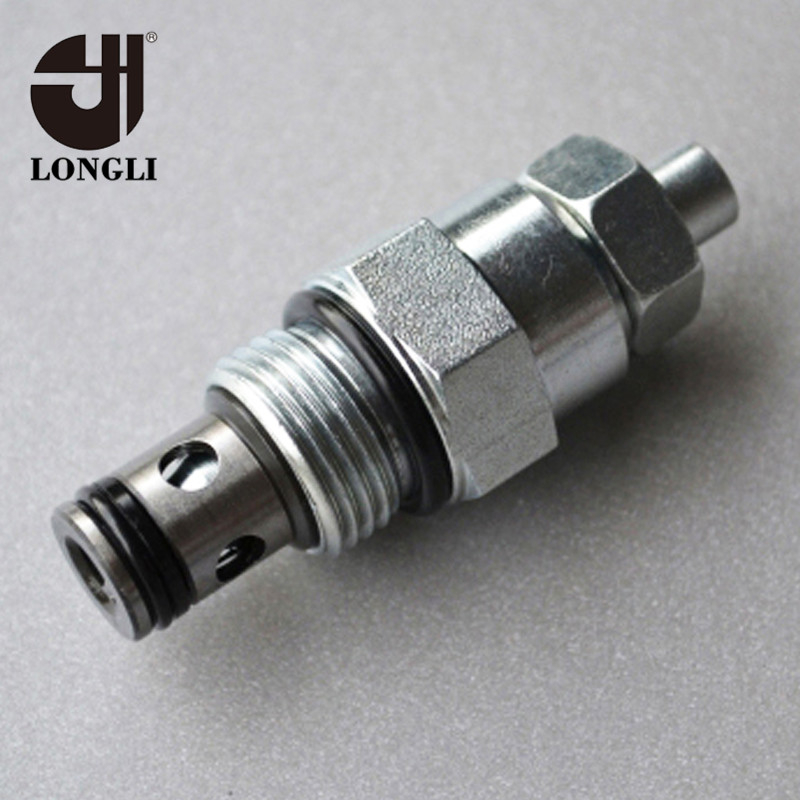

DLF08 DLF10 DLF12 DLF16 Hydraulic One-Way Hydraforce Type Throttle Cartridge Valves

Screw-in, cartridge style valve designed to provide a variable flow restriction with positive shut-off. All parts are made of high strength steel. They have an industry standard common cavity, and are compact sized for mobile hydraulics and mini hydraulics applications.
Max Flow:
Max Pressure:
Availability:
Quantity:
  • DLF08 DLF10 DLF12 DLF16

  • Longli

  • 8412299090

DESCRIPTION


The DLF is a cartridge check valve. It will allow flow in one direction, and blocks flow in the opposite direction. It may also be referred to as a non-return valve. The valve uses sealed poppet technology to give virtually zero leakage with liquids and gases. In the check valve flow is free in one direction and blocked in the reverse one. Small dimensions and their insert configuration makes these valves ideal for installation into custom designed hydraulic integrated circuit.


FEATURES

  • Check or Non-Return valve

  • Cartridge design ideal for installation in manifold systems

  • Internally threaded for easy extraction

  • Sealed poppet design

  • Virtually zero leakage

  • Suitable for liquid or gas

  • Suitable for use with hydraulic oil

  • Suitable for many other media, contact us for advice

  • Various seal options available


Parameter

Model: DLF10-00 DLF12-00
Place of Origin: Shandong,China (Mainland)
Product: Hydraulic Screw In One Way Check Valves
Description: With small size, light weight, low cost for unit
Materials: free-machining steel
Working pressure: 240bar

Flow: 45-360L/min

Customized design: Available, as per drawings or samples
OEM/ODM business: Acceptable, please contact us
Quality tested: High pressure testing before delivery
Different threads: BSPP, METRIC,SAE option

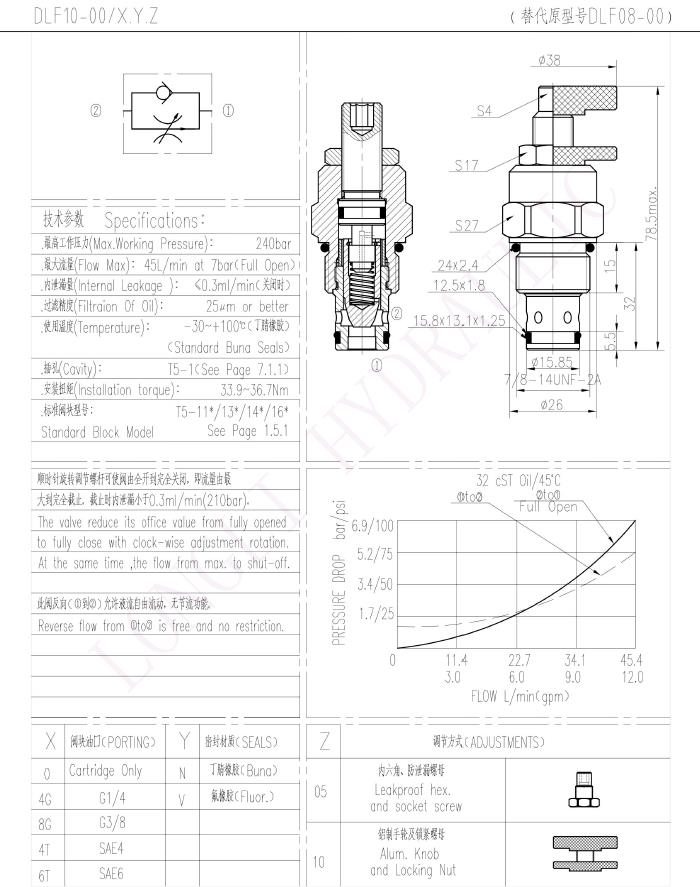

DLF08 DLF10 DLF12 DLF16 Hydraulic One-Way Hydraforce Type Throttle Cartridge Valves

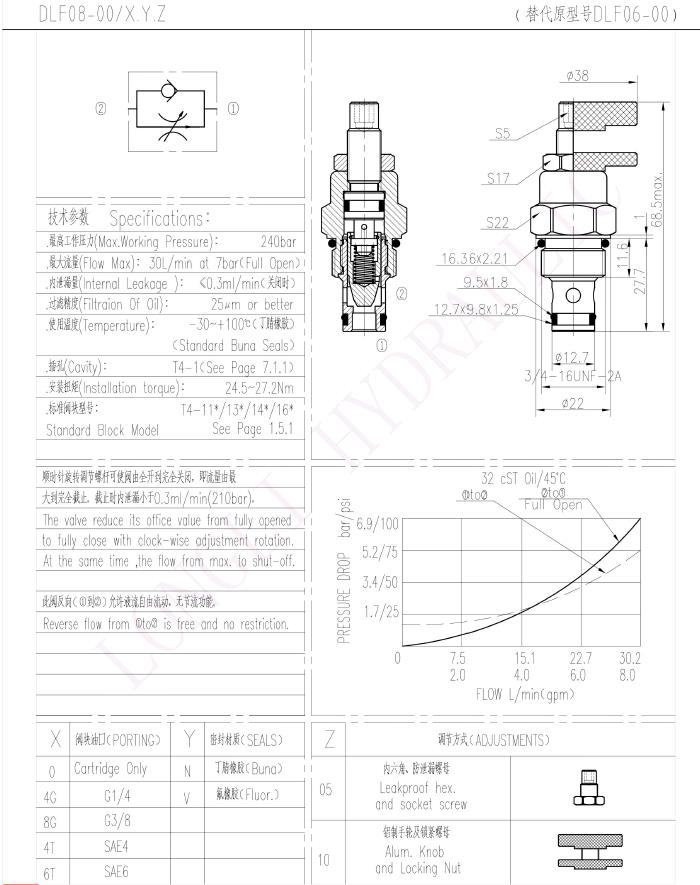

DLF08 DLF10 DLF12 DLF16 Hydraulic One-Way Hydraforce Type Throttle Cartridge Valves

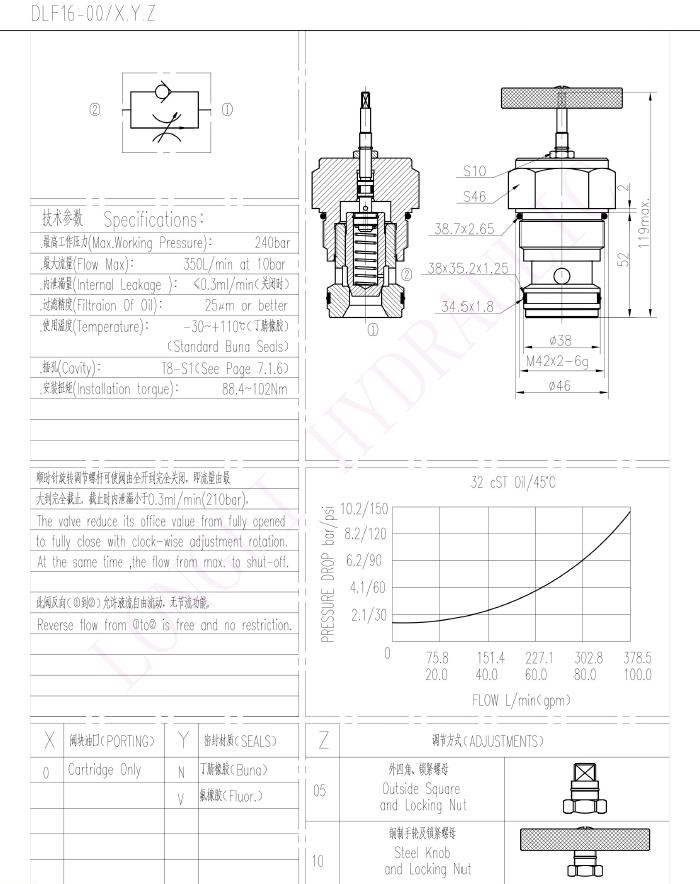

DLF08 DLF10 DLF12 DLF16 Hydraulic One-Way Hydraforce Type Throttle Cartridge Valves

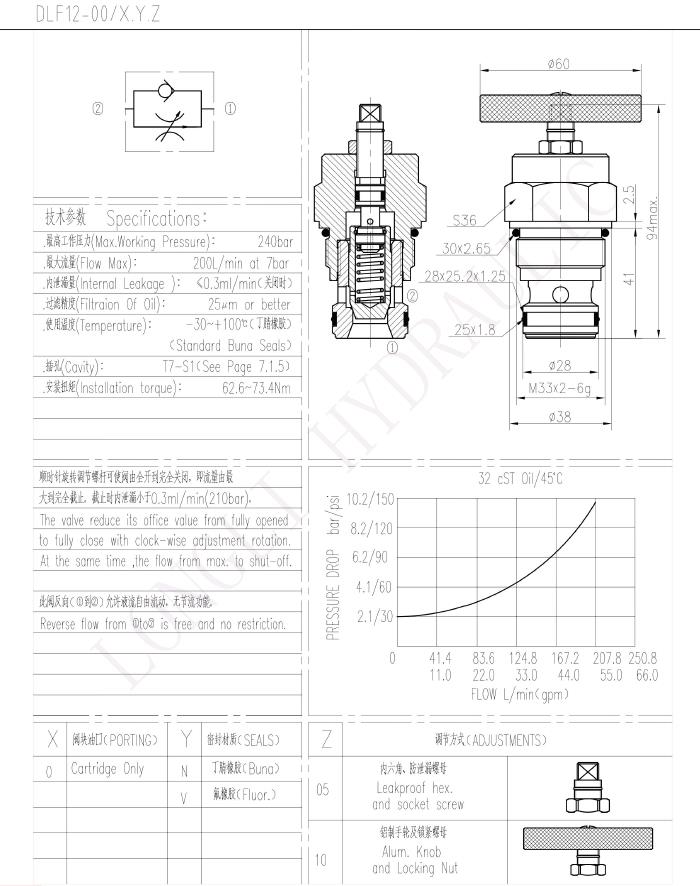

DLF08 DLF10 DLF12 DLF16 Hydraulic One-Way Hydraforce Type Throttle Cartridge Valves
