DC08-40 Dual Pilot Open Check Lock Valve
You are here: Home » Products » Cartridge Valve » Flow Control » DC08-40 Dual Pilot Open Check Lock Valve
Share to:

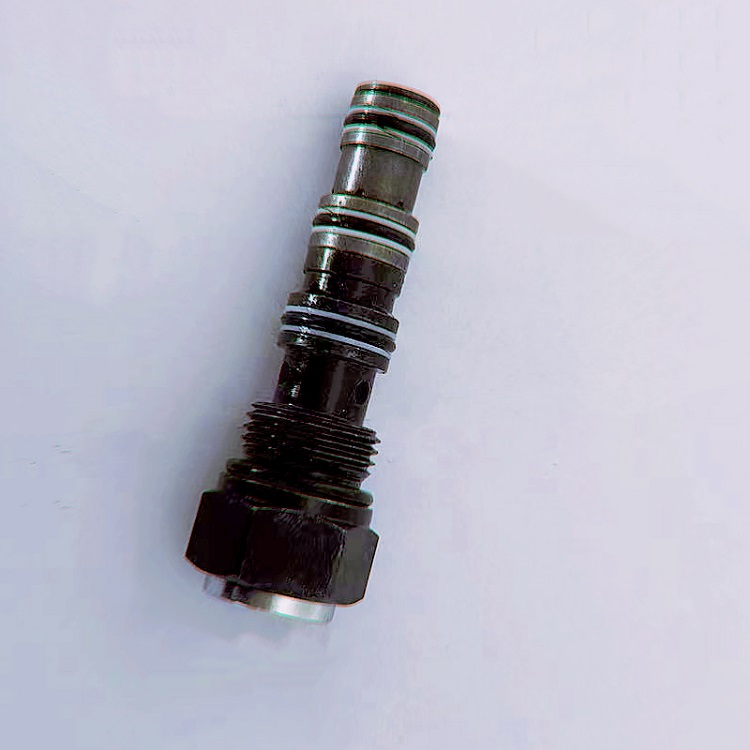

DC08-40 Dual Pilot Open Check Lock Valve

Model:DC08-40
Availability:
Quantity:
  • DC08-40
  • Longli
  • 8481802990

DC08-40 Dual Pilot Open Check Lock Valve

Technical Parameter


Product name

Hydraulic Cartridge Valve

Model

DC08-40

Place of Origin

Shandong, China

Max. Flow

18.90L/min

Max.Pressure

210 bar

Material

Aluminum

Medium

Oil

Type

Hydraforce / Sun

Power

Hydraulic

Color

Customer's request

Certificate

ISO9001

Size and Function

Can be customized according to your requirement



Features:

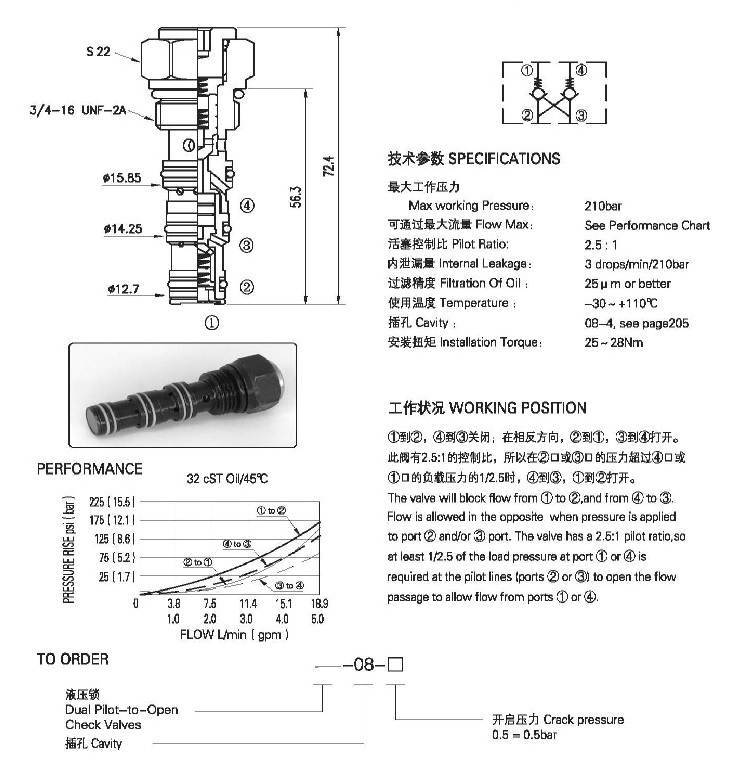

The valves will block flow from 1 to 2, and from 4 to 3. Flow is allowed in the opposite when pressure is applied to port 2  and / or 3 port. The valves has a 2:5:1 pilot ratio, so at least 1/2.5 of the load pressure at port 1 or 4 is required at the pilot lines  ( ports 2 or 3) to open the flow passage to allow from ports 1 or 4)

无标题
