4WMM10A/B/D/Y/E/J/L/U/G/T Directional Control Valves with Hand Lever Type
You are here: Home » Products » Hydraulic Valve » Rexroth Series » 4WMM10A/B/D/Y/E/J/L/U/G/T Directional Control Valves with Hand Lever Type
Share to:

4WMM10A/B/D/Y/E/J/L/U/G/T Directional Control Valves with Hand Lever Type

Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Size:
Material:
Max Pressure:
Max Flow:
Color:
Quantity:
  • 4WMM6/10/16/25
  • Longli
  • 841290

   4WMM10A/B/D/Y/E/J/L/U/G/T directional control valves with hand lever type

 Features:

- Direct actuated directional spool valve with hand level

- With spring return or detent, optional

- For subplate mounting


Product name

Directional control valve

Model

4WMM10

Place of Origin

Shandong, China

Size

10mm

Max. Flow

up to 450 L/min

Max.Pressure

up to 35Mpa

Material

Casting

Fluid

Mineral oil or Phosphate ester

Temperature range

-30~+80

Power

Hydraulic

Color

Customer's request

Certificate

ISO9001

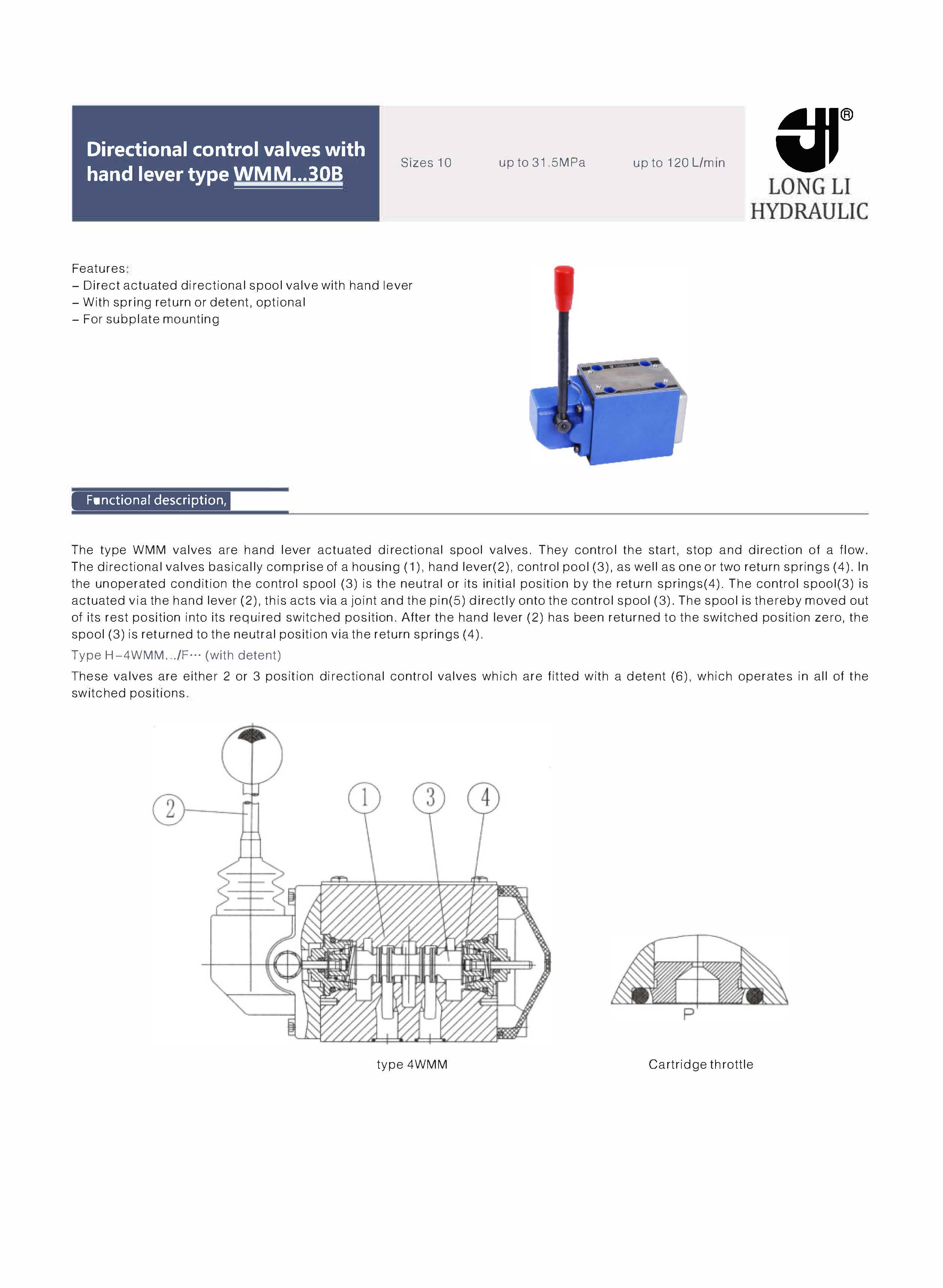

Directional control valves with hand lever type WMM 30B_页面_1

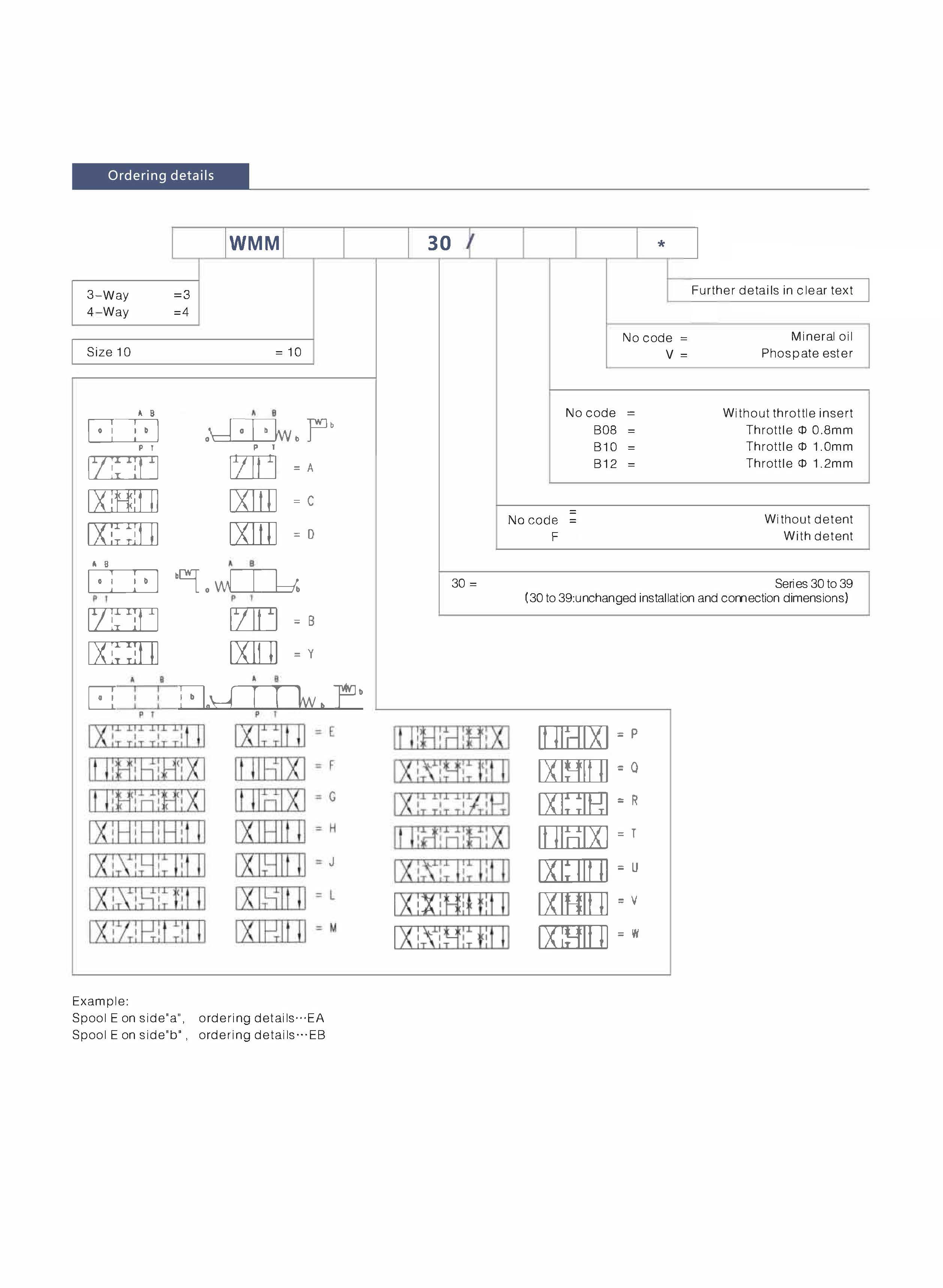

Directional control valves with hand lever type WMM 30B_页面_2

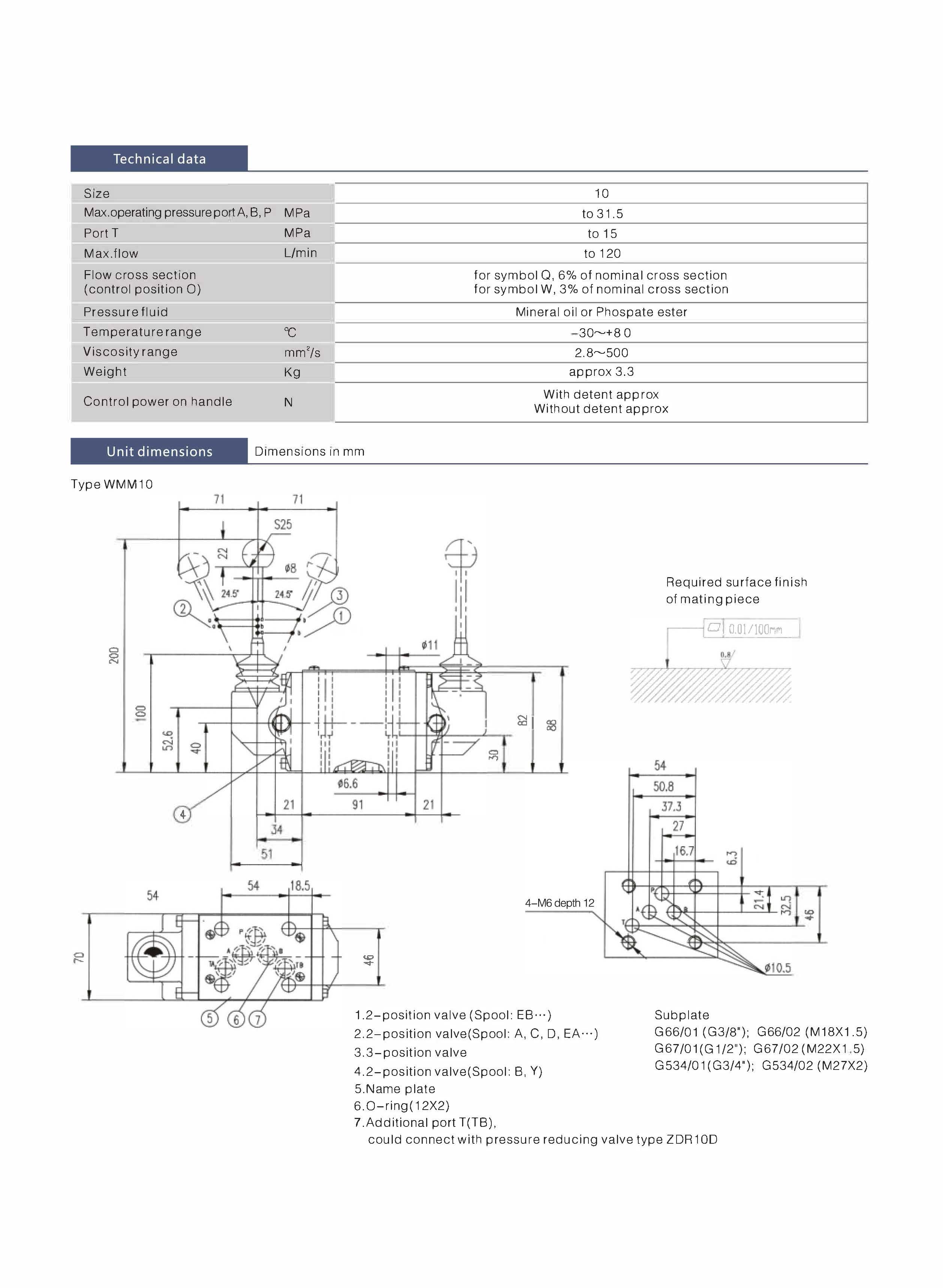

Directional control valves with hand lever type WMM 30B_页面_3详情页底图4





详情页底图2
